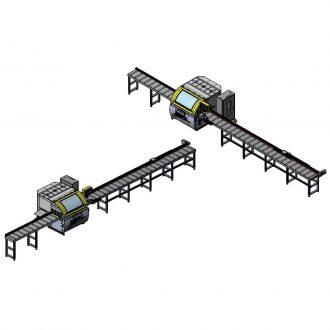

The PMI-T5S CNC compound auto miter upcut saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).

Standard Features & Equipment:

  • Fully Automatic Operation
  • 7.5 HP Saw motor
  • Compound Miter
    • Rotation 45 degrees to left and 67.5 degrees to right
    • Tilt 45 Degrees to Right
  • Powered, Servo Driven Saw Head Rotation and Tilt
  • Built-in Automatic Pusher System – Servo Controlled
  • TouchScreen Control
  • 2000 RPM Saw Blade Speed
  • Full Control of the Feed Rate – Fully Hydraulic
  • Vertical and Horizontal Clamping
  • Adjustable Clamping Pressure
  • 24” Diameter Saw Blade
  • 7” Maximum Sawing Height (at 90 degrees)
  • 16.9” Maximum Sawing Width (at 90 degrees)

Cut Chart:

PMI-T5S CNC Auto Miter Cut Chart

 PMI-T5S CNC Auto Cut Chart


 PMI-T5S CNC Cut Chart
