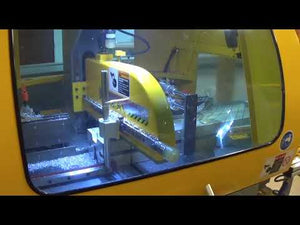

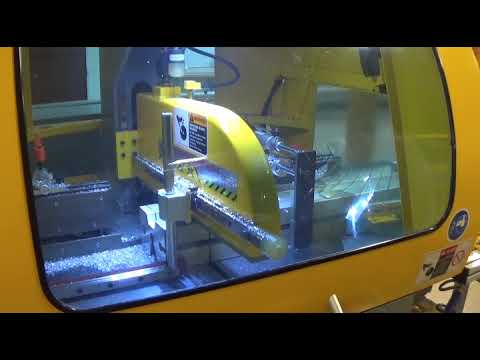

The PMI-20 CNC Auto Miter Upcut Saw is a fully automatic upcut miter saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).

Standard Features & Equipment:

  • Fully Automatic Operation
  • 7.5 HP Saw Motor
  • Servo Controlled, Powered Saw Head – 45 degrees to the left and right
  • Built-in Automatic Pusher System – Servo Controlled
  • Touchscreen Control
  • 3000 RPM Saw Blade Speed
  • Full Control of the Feed Rate – Air over Oil Feed System
  • Vertical and Horizontal Clamping
  • Adjustable Clamping Pressure
  • 20” Diameter Saw Blade
  • 5.9” Maximum Sawing Height
  • 11″ Maximum Sawing Width

Cut Chart:

PMI-20 CNC Auto Miter Upcut Saw - Cut Chart
