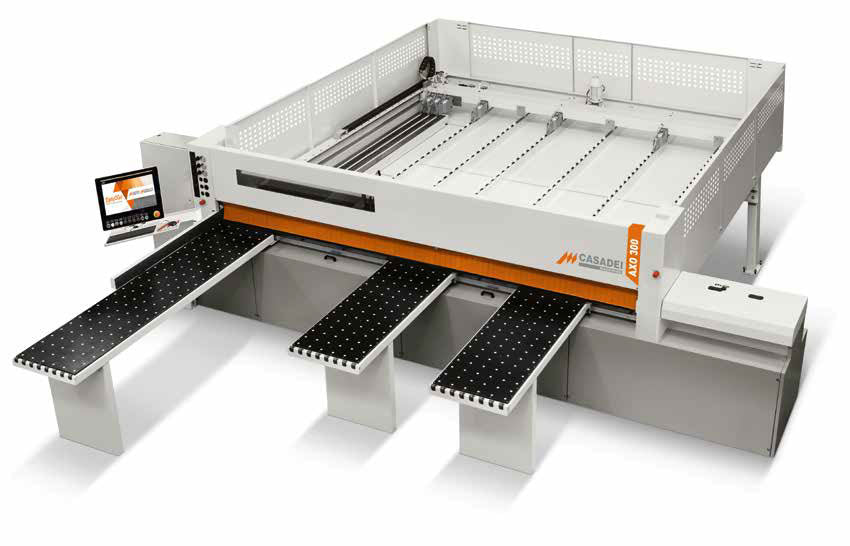

CASADEI AXO 300/3800


Front Load Panel Saw


  • Machine Frame
    • Heavy plate-steel table with double tubular structure
    • Heavy plate steel saw bed with Phenolic top
    • Rear table extruded aluminium structure with Phenolic top
    • Support rollers of non-scratch UHD
    • Safety fences around rear of the machine
  • Saw Carriage
    • Independent drives, main and score blade using prismatic guides.
    • Vertical adjustment over THK guides
    • Driven by precision Rack and Pinion
    • Movement of carriage on “V” Grove rollers riding on hardened steel guide rails (5 Yr. Warranty)
    • Saw carriage stroke toward cross-cutting fence
  • Pressure Beam
    • Fabricated from steel plate
    • Slotted for grippers
      • ensures exact panel positioning
    • Double rack and pinion system for movement
    • Large pneumatic cylinders at both ends
  • Double dust collection
    • Top connection for dust removal from pressure beam
    • Bottom connection for chip removal from saw carriage
  • Operator controls (PC)
    • Mounted on Left Side
    • 17” Touch Screen Color Monitor
    • Intel Processor with Windows
    • Standard Keyboard
    • Label printer (optional)
    • USB ports
  • Safety
    • Safety fence system with slotted or plastic window
    • Safety screen
  • Full length powered pusher
    • Central drive system
    • Two heavy duty torsion bars
    • Electronically adjustable
    • The pusher travels in structural H-beams
    • Pusher feed is by two high precision rack & pinions
    • 5 clamps for panel clamping
  • NC positioning of material pusher
    • Linear magnetic measurement system

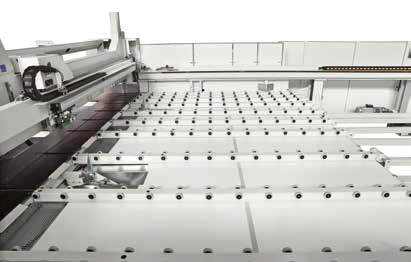

  • Automatic Side Aligner
    • Automatic positioning w/ pneumatic cylinder
    • Minimum width: 60 mm (2.36”)
    • Maximum width: 1200 mm (25”)
    • The side aligner slides over a THK guide
  • Main electrical cabinet with:
    • Dust-proof cabinet (IP 55/NEMA 12) with lockable main disconnect
    • Overload protections for motors and controls
    • Interlocking safeties, emergency bar and blade change cover
    • Control voltage 110 Volts for control board, electronic control and low voltage signals

“Easy 2 Cut” software

  • Control and programming system including:

Console with integrated PC Smart Control equipped with:

(minimum features):

- Industrial PC “fanless”

- Protection class IP53 (only on front IP65)

- LCD colour display: 21,5”, Full HD; 16/9; LED backlighting; 10 touches

  capacitive multi touch screen; viewing angle 176°H, 160°V “zero pixel


- Intel Pentium processor; 2,9 GHz

- RAM memory: 8 GB

- Hard disk: 256 GB

- Operating system: Windows

- Querty keyboard with English layout

- Wired mouse

- Ethernet socket RJ45

- Single, external USB port. 3.0

- Nominal operating temperature: from +5°C to +35°C

- Software Easy2Go Cut

Easy2Go Cut with following functions:

Working modes

  • Manual mode for axis movements
  • Automatic mode: execution of cutting programs and/or lists of cutting
  • Semi-automatic mode: execution of different measures programmable
    from the keyboard

Advanced Editor of cutting pattern

  • Advanced editing system for cutting pattern in WYSIWYG mode for

  management of longitudinal, transversal cuts, pre-cuts, trim cuts and

  second level cuts.

Advanced file browsing system

  • The file browser Easy2Go cut allows to manage/start/copy/delete the

  machine programs. A real-time preview function allows to check in

  browser each cutting pattern.

Control Paddle (screen)

  • Virtual pushbutton control panel

Management of tools and materials archives

  • The materials and tools archives allows to archive each item with its

    operating and execution parameters.

    Machine simulator

    • Possibility to view the graphical simulation in real time with

      indication of the cutting dimensions and timing.

    Reporting system

    • The control records every single action/event in the machine and makes

      available production reports, events, alarms and maintenance.

    Maintenance support

    • Easy2Go cut reports operations to be carried out on the machine, with

      periodic notifications connecting them to the relevant procedure.

    Diagnostic system

    • Easy2go Cut detects and displays alarms and warnings, offering help for

      elimination of the current error.

    User management

    • Easy2Go records the activities of each operator registered in the system

    Label editor

    • The label editor allows creation and printing of labels even with bar codes

      directly on the machine. The operator can enter new data on the label or

      transfer them from the Perfect Optimiser Plus or Easy Cut Pattern

      Optimiser database. Information can be printed with a text or bar codes.

      In addition, it is possible to add imagines or lines.

      Additional functionalities included in specific modules make Easy2go Cut

      extremely flexible for pieces labelling, with the possibility of previews

      during editing and execution pattern, enabling elaboration of statistical

      information even more detailed.

    Measuring system

    • Measuring unit: millimetres-tenths or inches-thousandths

    Available languages

    • Operator's interface available in the following languages:

       Italian, English, French, Spanish, German

    Note: The description of the control system includes certain functions
                that are present only with a suitable machine mechanical or
                electrical set up. As a result, the label data editor in each
                program is present only with the relative optional devices,
                shown in the price list, selected on the machine


  • “Easy Cut Pattern Optimiser” cutting optimiser

    Optimization software for creating cutting programs starting from the raw panel up to the finished panel.
    Easy Cut Pattern Optimiser processes the layout of optimized cutting patterns, which are automatically converted to cutting programs without the intervention of the operator. At the end of optimization, the cutting program related to the layout created by Easy Cut Pattern Optimiser is automatically saved in the directory of the program Easy2go Cut, the software for cutting management. The program manages a small panel stock.
    Technical features:

    • Types of formats for each material: 5
    • Max. no. of lines per program: 30
    • Max. no. of pieces per line: 500
    • Cutting level: longitudinal (Y), transversal (X) third level (Z)
    • Management pre-cut
    • Management off-cuts stock interfaced with Easy2Go Cut
    • Statistic report: % order waste, number of used panels, number of

      produced panels

    • Graphic visualisation of product schemes
    • 8 import fields for label information (material, type of colour, thickness,

      width, length, code, description, 4 edges fields)

    • Panel stock: 2
    • Import from XLS file >= Excel 97. Allows import of Excel files with data

        related to the pieces of a cutting list of only one material (code,

        description, length, width, quantity, grain, 4 edge fields)

      TELESERVICE system service via internet
      The remote diagnosis system allows you to connect your PC with the service center via Internet.
      Software: linking program for:
      - Upgrade the machine logic and operator interface
      - Back-up data and file transfer
      - Control configurations, parameters and programs
      - Interface and display diagnostic signals
      Note: Network cable and PC not included. The Internet connection must be prepared by the customer.

      Service free of charge for the duration of the warranty


Ripping capacity

3800 mm

149.6”  (12.5 ft)

Useable pusher stroke

3800 mm

149.6"  (12.5 ft)

Worktable height

950 mm


Main blade projection

90 mm


Main blade power

9 kW

23 HP

Main blade diameter

380 mm


Main blade arbor

80 mm


Main blade rotation speed

3900 rpm


Scoring blade power

1.5 kW

3 HP

Scoring blade diameter

200 mm


Scoring blade arbor

80 mm


Scoring rotation speed

4200 rpm





Saw carriage speed

6 - 60 mpm

19 – 200 fpm

Maximum pusher speed

60 mpm

197 fpm

Number of grippers/ clamps

5 (standard)

Dust extraction outlets @ diameter

3  @  120 mm



1  @  150 mm


Dust extraction velocity

28 mps

5500 fpm


1.13 m3/s

2400 cfm

Compressed Air

6 Bar

90 psi


300 Nl/min

11 cfm

Gripper Spacing: 5  (pos. 1,3,5,8 & 10) additional grippers available at the end of the quote


CA1801    AXO 300/38

CA3231    Pusher Stroke 3800mm

CA2213    Different voltage/frequency 220/230V 50/60Hz –Neutral connection

CA8246    Air Conditioning System for the Electrical Cabinet

CA3213    Fixed air floatation table w/ crosscut aligning fence

                 2500 x 600 mm (98.5 x 24”)

CA8226    Two front movable air floatation tables on wheels

                 1500 x 600 mm (59 x 24”)

CA7251    Centralized blower fan for air floating tables

Included   Saw and scoring blade flanges with pneumatic lock

CA2277    Four (4) Additional clamps

CA32v4    Main motor upgrade 24 Hp

CA2632    Integrated webcam for rear table monitoring

CA5018     Panel size check for use in semi-automatic mode


Seller warrants, for a period of one (1) year beginning on the date the Machinery is accepted, that the Machinery will be free of defects in workmanship and materials, excluding belts, bearings, and common electrical parts, which carry a six-month warranty. This warranty does not include parts consumed during normal operation (wearable items), working units, or maintenance required in the ordinary course of operation.  Seller shall warrant any replacement spare parts and accessories installed pursuant to this warranty for the period of ninety (90) days.


Tooling, including blades, is not included unless noted.  Upon request, we can supply a quotation of the most suitable tools required for use on this machine.
