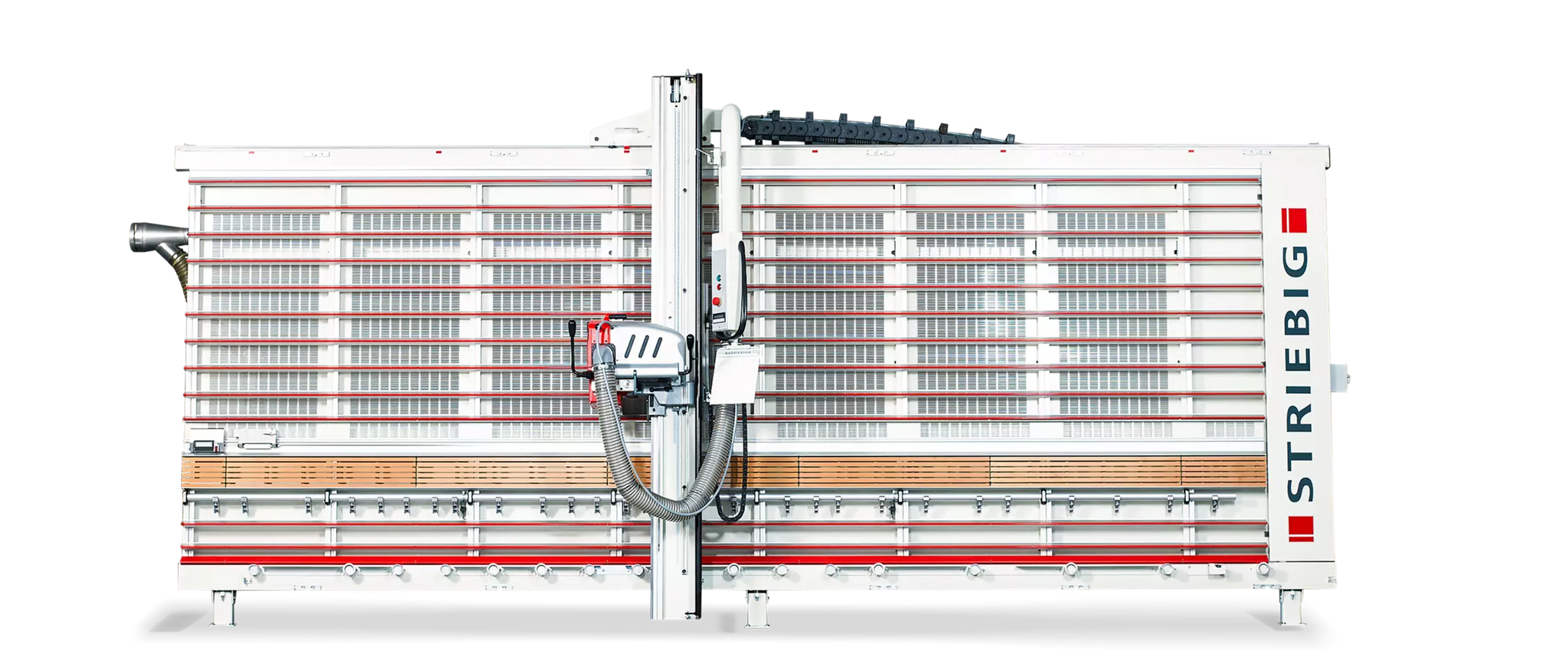

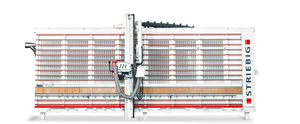

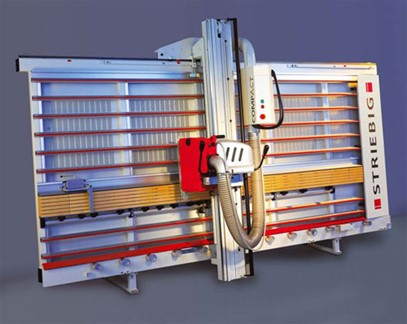

The Compact Vertical Panel Saw delivers legendary Striebig accuracy at a compact price.

  • Cuts up to 5' x 10' panels
  • Free standing, one-piece fully welded frame
  • Heavy-duty support rollers with integral panel stop assembly
  • Full-length center support shelf adjustable spacing for fingers
  • Built-in small parts support
  • Special measuring stop for use with small parts
  • Automatic, mechanically upward shifting support grid to keep off cuts from binding grind
  • TRK dust system exceeds European standards; note: requires an external collector
  • Cutting stations 40 inches on center (1 meter optional)
  • Equipped with 5-1/4 hp, 220/440* volt, 3 Phase motor with electric brake
  • Noise protection below 80 db (Super Silent)
  • 250 mm (9-7/8") HFG carbide saw blade
  • Template bar accepts optional stops for setting common rip cuts
  • Optional repeat rip device for strip cutting from top of panel
  • Auto-engaging splitting wedge





Cut capacities:

10'2" W x 5'4" H; depth 2-3/8" (60mm)


Weight (approx.):

1100 lbs. (net), 1600 lbs. (gross)


Main Saw Blade

250 mm dia., 30 mm bore with (2) 7 mm pin holes (42 mm circle)


Scoring Saw Blade

80 mm dia., 20 mm bore split-blade type w/shims






3 phase, 220V/20 Amp or 440V/10 Amp service



*208V and 240V motors available


Dust collection:

1000 cfm, 100 (x2)mm connections (second connection at bottom right corner of frame is optional and hose is not provided.


The Compact is a totally new development from Striebig's engineers. It is designed to meet the needs of users who require a smaller vertical panel saw for all their sizing cuts. Each compact is equipped with all the typical features of a Striebig high-performance saw. It goes without saying that almost the entire range of standard accessories can be used on this machine. Apart from its size and power output, it is just as universal in use as all the other Striebig panel saws.

A Compact is the ideal machine wherever a modern, space-saving panel saw is required. It can saw anything and, thanks to its versatile range of accessories, is equally suited to handling universal as well as special jobs at an affordable price.


 A Compact will cut perfect edges on particle board, acrylics, composites,      plastic and non-ferrous metal panels to an accuracy of 1/10 mm. It is thus the ideal machine for many workshops that regularly need to cut these materials.

Independent of type and size, the sizing cut is the principle at Striebig and      this also applies to the Compact. The new self-supporting frame and a wealth of detail improvements guarantee precise, accurate cuts with perfect edges.

There are no differences in precision. You can measure and cut to an accuracy of 1/10 mm on a Compact with the digital measuring system (option). Additionally, the support rollers which are aligned and ground to a precision of 1/100 mm on all saws are a further guarantee of Striebig's unlimited measuring precision.

Each Compact shares the quality and precision features of Striebig's range of saws. The Compact's slightly smaller dimensions are the major difference between this new model and the other saws in the current range. Like all other Striebig saws, the new Compact naturally meets CE specifications.

Compact for every job - small, flexible, universal.

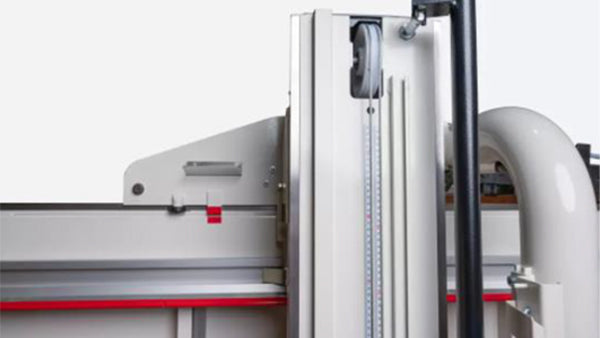

The saw beam

Guarantee of angular accuracy and solidness: The steel construction of the saw beam is particularly stable and durable. Its twin interlocking mechanism ensures perfect angular accuracy.

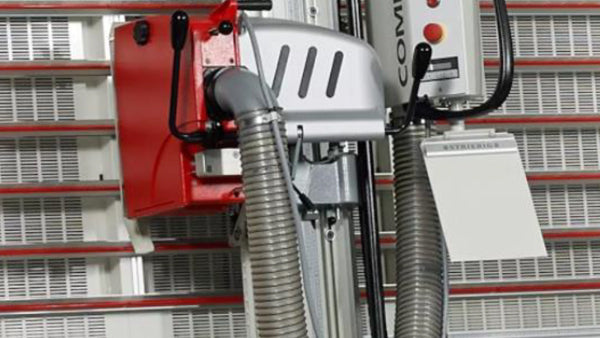

 The saw unit

The engine: strong and powerful, 3.9 kW (5.3 HP). The guide : backlashfree and smoothrunning. In conjunction with the robust bearing of the motor carriage, this guarantees easy and precise work for years.

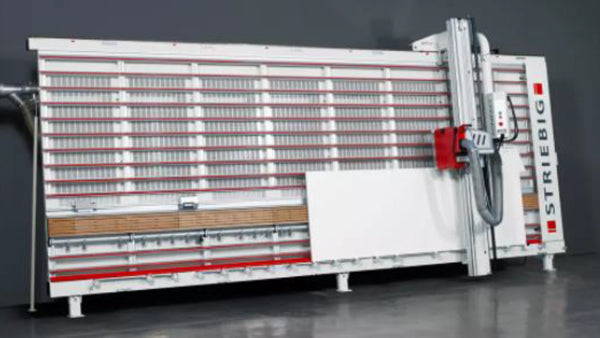

 The saw frame

Precision thanks to stability. Upper guide rail, central support and roller support are perfectly parallel to each other. This guarantees you many years of cutting precision and a high-level of investment security.

 Included Options:

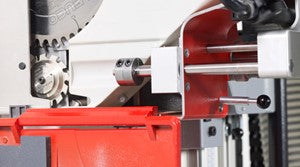

  • VSA Scoring unit with spacing shims

Saving time, costs and tools: With the scoring saw unit you achieve an even better cutting quality for coated panels.

  • DMS-X and DMS-Y Digital Measuring

Always the right dimension thanks to the digital measuring system DMS for the Y and  X-axis: The display accuracy can be freely selected between 0.1/0.5 and 1.0 mm.

  • Standard measuring stop
  • Template Bar Stops
  • Repeat Rip Device (25” scale)
