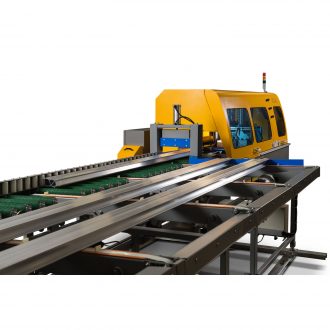

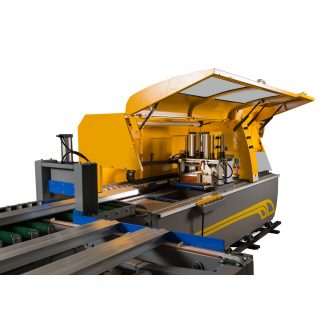

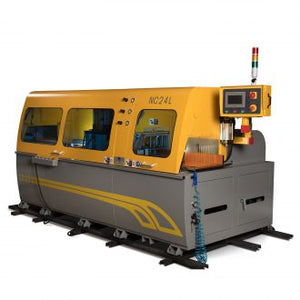

The PMI-NC24 L-Type is a fully automatic saw that is built and designed to cut aluminum extrusions, profiles, aluminums bars, and other non-ferrous materials (copper, brass, plastics).

Standard Features & Equipment:

  • 15 HP Saw Motor
  • 90 Degree (Straight) Cut Saw
  • Inverter Controlled, Infinitely Variable Saw Blade Speed – 1200 to 3600 RPM
  • Full Control of the Feed Rate – Fully Hydraulic (servo controlled available as an option)
  • Touchscreen Control
  • Ballscrew/Servo Controlled Material Indexing
  • Vertical and Horizontal Clamping – Bundle/Stack Cutting
  • Saw Table Separation – No Material Re-Cut – Improved Surface Finish and Extended Blade Life
  • Adjustable Clamping Pressure
  • Maximum Saw Blade Size 24” Diameter
  • 7.87” Maximum Height Capacity
  • 15.75″ Maximum Width Capacity

Cut Chart:

PMI-NC24 L-Type Cut Chart
