  • Welded steel frame
  • Manual load and unload
  • Mesh fence at the back of machine
  • Adjustable pressure
  • Electromechanical motor system
  • Maintenance free
  • Silent operation


  • 230 V – 3 Ph – 60 Hz


·        Useful length max.

2500 mm


·        Useful length min.

200 mm


·        Useful height max.

1250 mm


·        Useful height min.

200 mm


·        Depth max.

650 mm


·        Height of worktop

500 mm

4.75” / 66

·        Pressing strength

0-1300 Kp


·        Voltage

230 / 60


·        Installed power

3 kw

3 kw

·        Overall weight

1300 kg

2866 lbs.

·        Space occupied




Three operating modes:


o   The manual mode allows the operator to move the different parts of the machine by pushing the relative buttons.

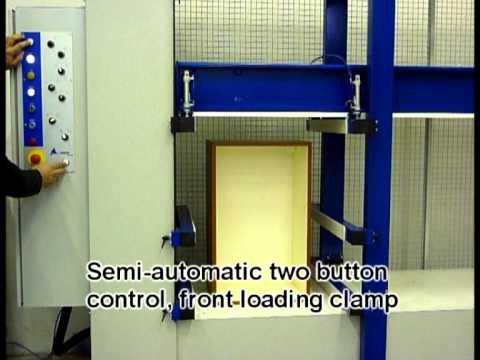

o   This is the standard working cycle. The operator inserts the furniture inside the machine ,pushes two-handed buttons and waits until the cycle finished.


o   This is a special cycle and the machine needs some optional equipment to do this work.



·       To regulate the vertical pressure, turn potentiometer VERTICAL FRAME at anytime.

·       To regulate the horizontal pressure, turn potentiometer HORIZONTAL FRAME at anytime.


Description of working cycle (standard machine):

·       After you insert the furniture inside the machine and press two white buttons at the same time, horizontal frame will descend and touch the cabinet before ascending and positioning itself 1-2 cm from the top of the cabinet.

·       The vertical frame moves the cabinet and start to press the side of cabinet.

·       After that the horizontal frame will press the cabinet from the top.

·       The pressing starts with a low pressure and proceeds to the established time and force of pressing.

·       In case of electricity failure during the pressing, there is no risk because the cabinet stays in position as the machine cannot move.


·        Heavy duty welded frame with CNC precision milling.

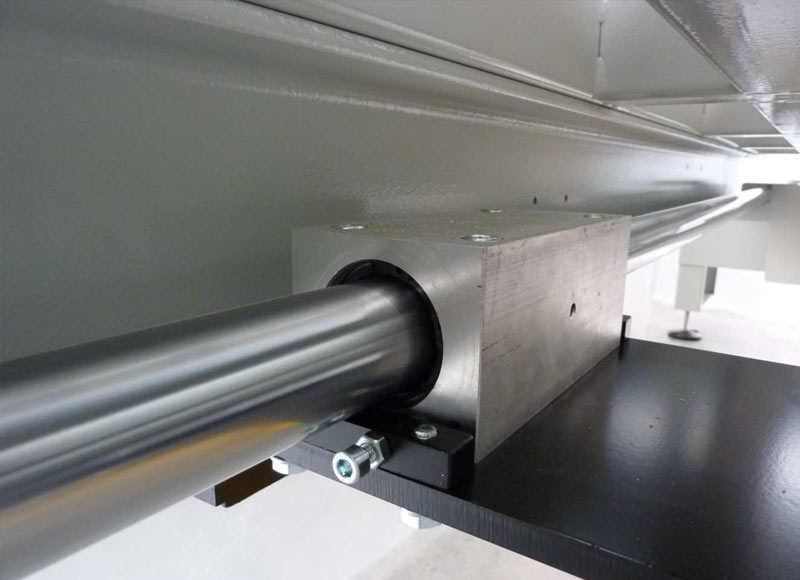

·        40mm diameter hardened guides that keep the pressing frames in true parallel.

·        Lateral pressing bar gearbox with clutch for furniture protection

·        NC Center lateral bar with encoder.  Touch screen has 10 presets for fast selection of working height.

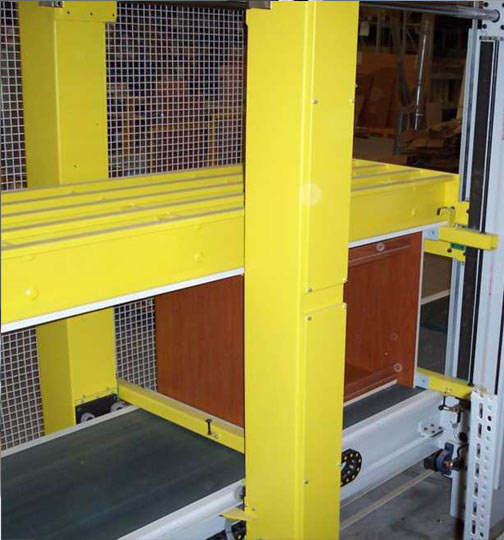

·        Dual pressing frames (horizontal & vertical) square the box to the fixed reference of the machine.

·        Closing force is accomplished by a gearbox and steel reinforced tooth belt with dual pressing frames (horizontal & vertical)

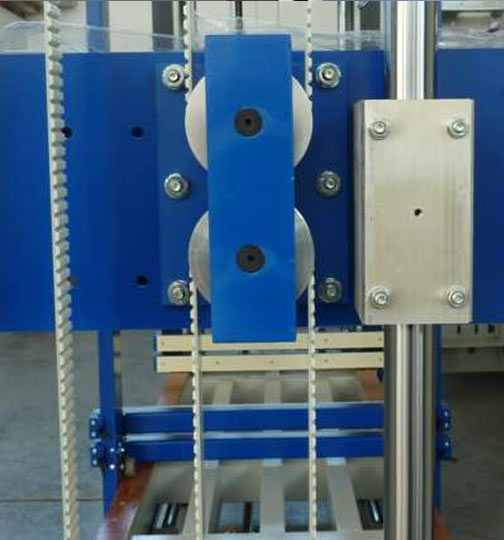

·        Patented double pulley traveler system. This traveler system quadruples motor power and transfers it to the pressing frame to ensure square closing of boxes with multiple fixed shelves. Power is adjustable to both horizontal and vertical pressers.  This system is superior to pneumatic cylinders as Bonacin allows precise pressure regulation. It is faster than screw systems.

·        Automatic clamping of cabinets with overhanging tops

·        Available in front load with pass thru capability
