DESCRIPTION

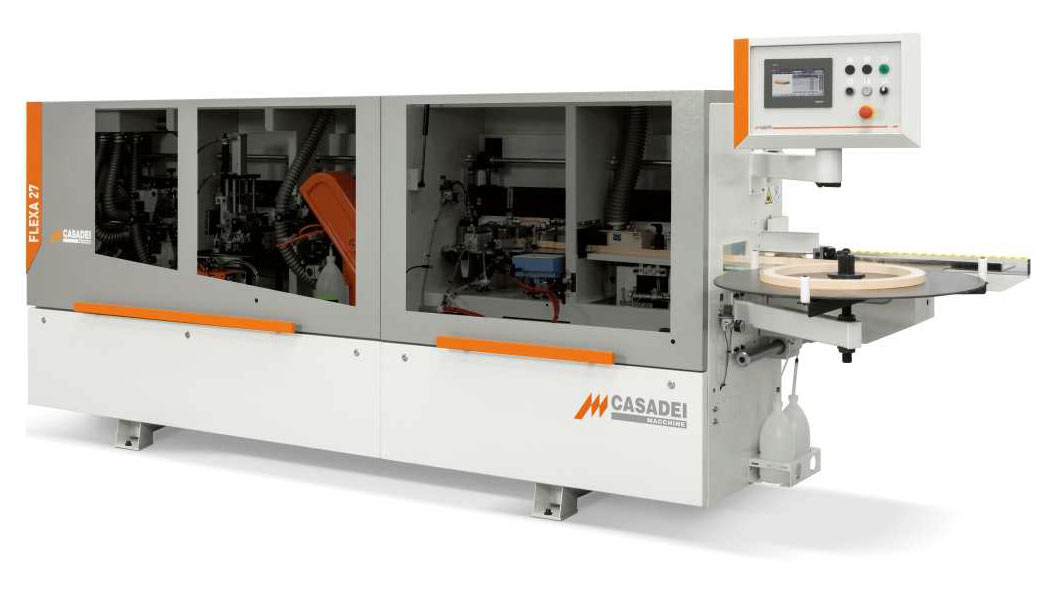

Flexa 27 RMA8 Edgebander
The Flexa 27 Series is an affordable and flexible solution for the medium size shop with the ability of banding tape, 1-3mm pvc, laminate and wood strips. With features typically found on solutions much more expensive, the Flexa 27 Series offers a heavy duty Edgebanding solution at an entry level price.

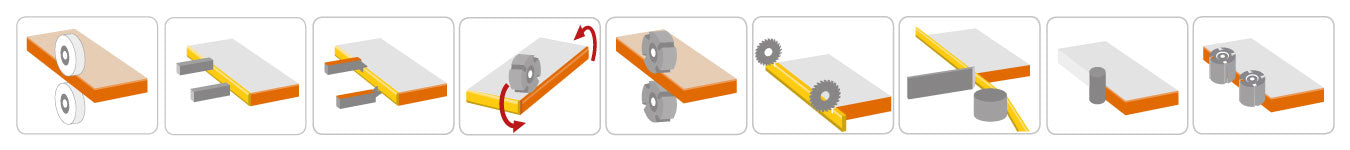

Units
Unit 1: Pre-milling unit
Unit 2: Glue applicator and pressure rollers
Unit 3: Edgebanding trimming guillotine
Unit 4: End Trim With 2 Tiltable motors 0-15 deg.
Unit 5: Top and Bottom Trimming via 2 motors
Unit 6: Corner rounding
Unit 7: Profile/ Radius Scrape
Unit 8: Glue Scraping
Unit 9: Brushing
CA1297 STANDARD EQUIPMENT
- Thick, welded Steel Frame
- Steel pressure beam with 2 rows rubber rollers
- Feed chain with industrial high grip rubber
- Chain on hardened steel guides
- Guides consist of one circular and one flat
- Manual adjustment of the pressure beam w/ readout
- Automatic pos. of the working units w/ reference to panel
- Mechanical digital indicators for panel thickness
- High Frequency Motors w/ Inverter
- Centralized dust extraction
- Adjustable panel support rollers
- Sound enclosure
- Lockable switch cabinet
- Equipped with
- Glue pot and edge processing magazine
- 2-Motor end trimming Unit. 0-15 deg
- 2- Motor Top and bottom trimming unit
- Edge scraping unit for 3mm
- Brushing unit
INCLUDED FEATURES
CA4785 Execution complying to US regulations (UL/CSA) Safety Standards
CA2074 Anti-adhesive Unit “RA” to avoid glue deposits on top and bottom surfaces
CA4020 Electronics 220/230v 50/60hz
CA2074 Anti- Adhesive unit “RA”

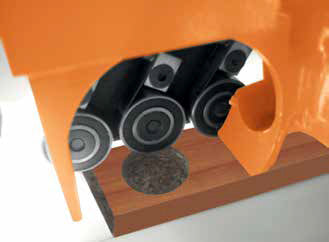

CA4545 Kit for "NESTING" process
CA5555 Glue Scraping Unit “GS/K1”
CA4088 Brushing/ Buffing Unit “BFK”
CA9360 Pallet FLEXA 27A – RMA8 L=3400
ELECTRICAL DATA:
E-Stop on main control panel
230 V – 3 Ph – 60 Hz. 37 Amps
MACHINE FEATURES
In feed and construction

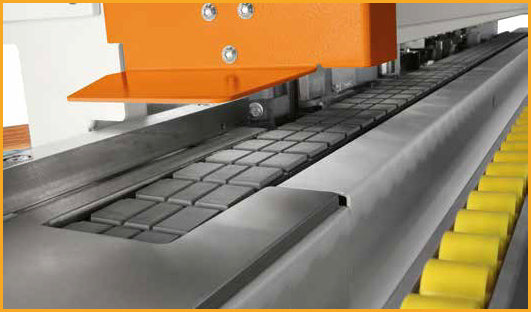

- Industrial grade in feed system with high grip, interchangeable rubber pads.
- Guided by a chain for accurate feeding and long lasting perfection
- Thick, Steel top pressure beam complete with two rows of rubber coated wheels.
- Robust panel support which can be extended according to the size of the parts
MEGA 120 Controller
- Ergonomic positioning
- 4”Graphic Display w/ multi language selection
- Glue temp. control w/ temp
- Unit operation and feed track start/ stop
- Digital readouts
- Parameter/ setting control
- On board diagnostics
- Partial and absolute statistical info: # of pieces worked, edge used and feeding information

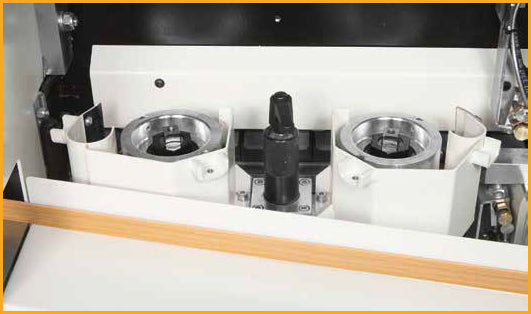

Pre-milling unit
- Two cutter heads with automatic timing
- Independent high frequency motors with
- Stock removal determined by infeed fence with digital display
- Timed blower to clean the machined surface
- Diamond tools
2.4 hp each. Tools D=100mm H=49mm
Max stock removal is H=45mm / 55mm ²

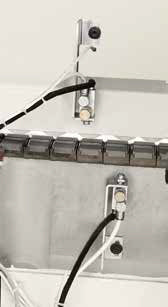

Anti- Adhesive Unit RA
- Perfect cleaning of the panel
- Prevents glue from sticking to the top and bottom surfaces

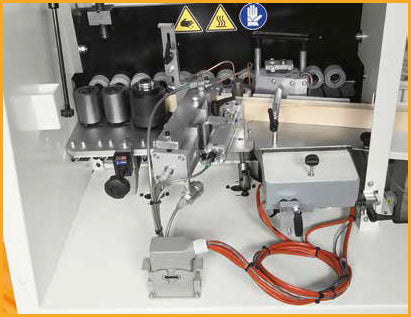

GP-200
- Two Pressure rollers (1 large, 1 flat)
- Teflon coated glue pot
- Automatic glue temperature regulator to reduce glue temperature if machine is not in use to reduce glue heat time
- Automatic recovery of glue
- Automatic loader for strips
2.4 kW. 3.3 HP Power. 1.5 Kg Capacity

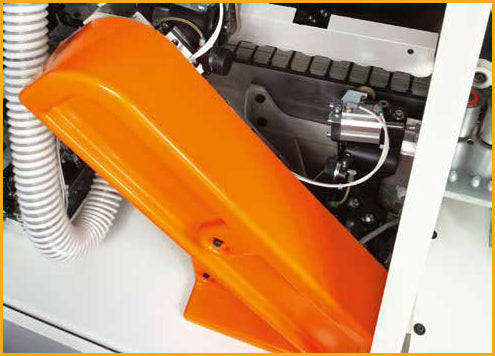

End Trimming Unit IK/200
- 2 Independent high frequency motors w/ blades
- Pneumatic tilting of the saw blade 0 – 15 deg. from control panel
- Units slide on THK guideways
- Mounted to the base for vibration free machining
12,000 RPM and .3 hp each

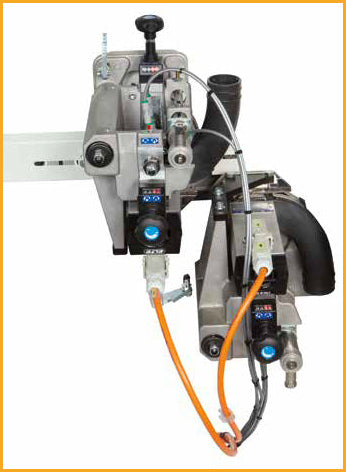

Trimming Unit “TT/K”
- 2 Independent high frequency motors
- Vertical revolving copy devices and front copy pads for accurate positioning
- Dust extraction hood
- 3mm tooling standard
12,000 RPM and .4 hp each

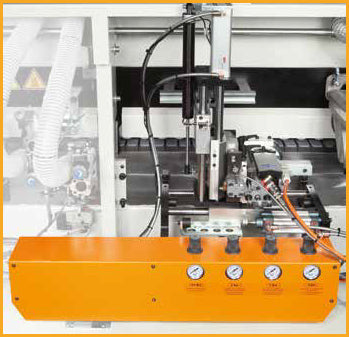

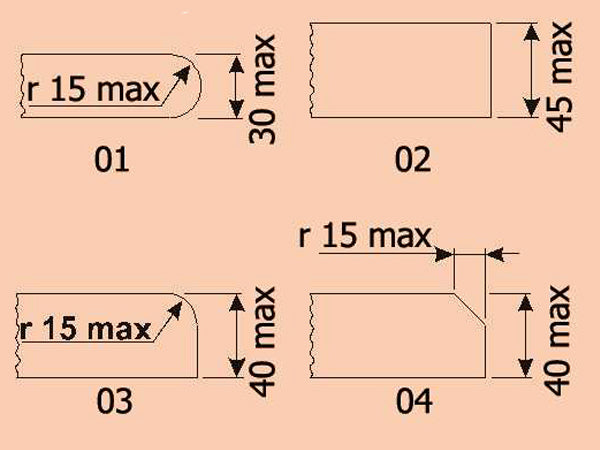

Corner Rounding Unit “A/1”
- For automatic rounding of PVC/ ABS edging with radius of 1 – 3mm
- High frequency motors
- Two manual working positions
- Vertical and frontal copying device for adjustment of cutting point on the panel
- Supplied with 3mm diamond tooling
- Manual exclusion

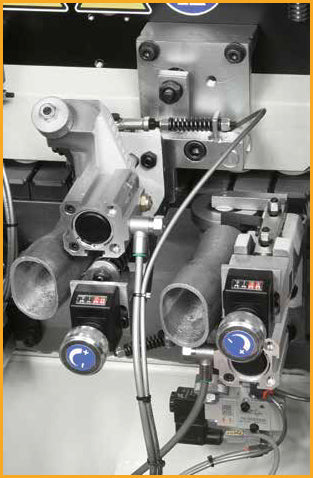

Edge Scraping Unit “SCR/K”
- For finishing 1mm – 3mm PVC/ ABS edging
- Front and vertical copy devices for accurate positioning of the knives
- Complete with digital mechanical readouts for accurate positioning and adjustment
- Dust extraction
- Supplied with 3mm tooling

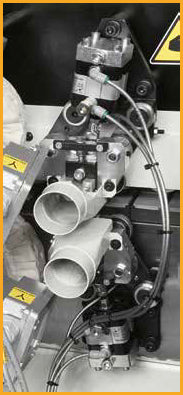

Glue Scraping Unit GS/K1
- Eliminates excess glue between panel and edge
- Eliminates small edging overhang (0.1 – 1mm)
- 2 Pairs of vertical rotating copiers
- Air blowers on both cleaning knives
- Self-adjusting throwaway knives

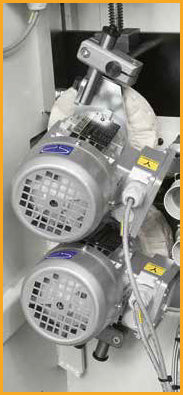

Buffing Unit “BFK”
- For cleaning panel to reduce manual labor of finished parts
- 1,400 RPM each
- .20 hp motor each

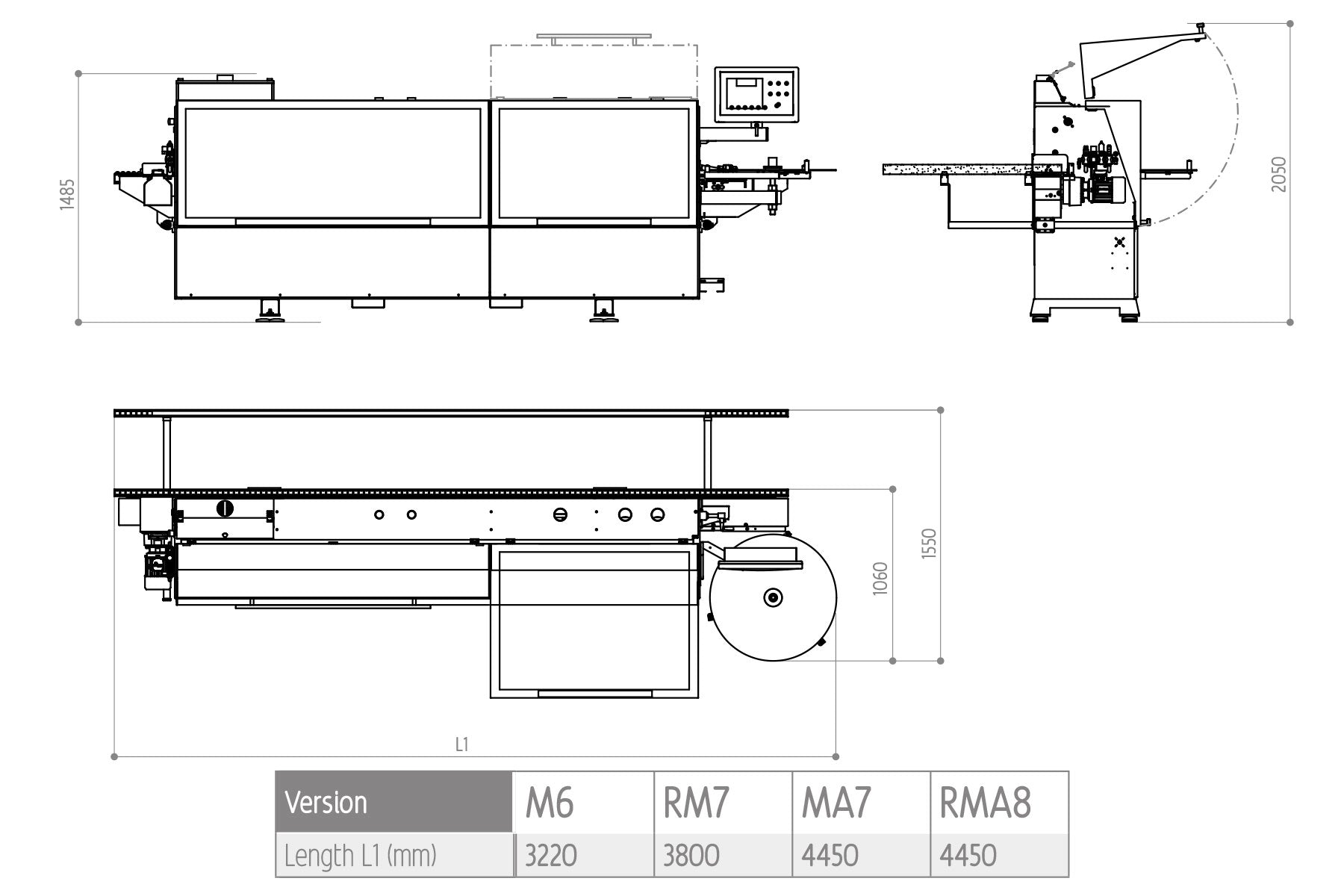

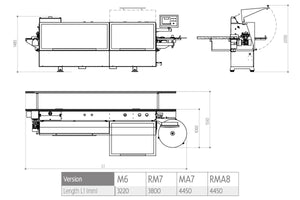

SPECIFICATIONS
|
TECHNICAL DATA:
|
Flexa 27 RMA8
|
|
- Panel height
|
8-60 mm
|
0.3 - 2.36”
|
|
- Coil edge thickness
|
2mm
|
.08”
|
|
- Strip edge thickness
|
.3 - 6mm
|
.015 - .24”
|
|
- Max overhang top and bottom (total top and bottom)
|
4 (2+2) mm
|
0.16”
|
|
- Min panel width (with min length of 210mm or 8 ¼ “)
|
90mm
|
3.54”
|
|
- Min panel length (with min width of 100mm or 3 15/16 “)
|
140mm
|
5.5”
|
|
- Feed speed
|
10 m/ min
|
33 f/min
|
|
- Glue Tank GP-200
|
|
|
|
o Power
|
|
2.4 kW
|
|
o Glue capacity
|
1.5 kg
|
3.3 lbs
|
|
- End Trimming Unit IK/200 (each)
|
|
|
|
o Motor size
|
|
.3 HP
|
|
o Cutting speed
|
|
12,000 RPM
|
|
o Blade tilt
|
|
0-15 deg.
|
|
- Top and Bottom Trimming TT/K
|
|
|
|
o Motor size (each)
|
|
.4 HP
|
|
o Cutting speed
|
|
12,000 RPM
|
|
- Edgescraping SCR/K
|
|
2mm
|
|
- Glue scraping unit GS/K1
|
|
0.1 – 1mm
|
|
- Brushing
|
|
|
|
o Motor size (each)
|
|
.2 HP
|
|
o Speed
|
|
1,400 RPM
|
