 Flexa 27 RM7 Edgebander

The Flexa 27 Series is an affordable and flexible solution for the medium size shop with the ability of banding tape, 1-3mm pvc, laminate and wood strips. With features typically found on solutions much more expensive, the Flexa 27 Series offers a heavy duty Edgebanding solution at an entry level price.

Operating Units

Unit 1:       Pre-milling unit
Unit 2:       Glue applicator and pressure rollers
Unit 3:       Edgebanding trimming guillotine
Unit 4:       End Trim With 2 Tiltable motors  0-15 deg.
Unit 5:       Top and Bottom Trimming via 2 motors
Unit 6:       Profile/ Radius Scrape

Unit 7:       Glue Scraping

Unit 8:       Brushing


Flexa 27 RM7

·        Panel height

8-60 mm

0.3 -  2.36”

·        Coil edge thickness



·        Strip edge thickness

.3 - 6mm

.015 - .24”

·        Max overhang top and bottom (total top and bottom)

4 (2+2) mm


·        Min panel width (with min length of 210mm or 8 ¼ “)



·        Min panel length (with min width of 100mm or 3 15/16 “)



·        Feed speed

10 m/ min

33 f/min

·        Glue Tank GP-200



o   Power


2.4 kW

o   Glue capacity

1.5 kg

3.3 lbs

·        End Trimming Unit IK/200 (each)



o   Motor size


.3 HP

o   Cutting speed


12,000 RPM

o   Blade tilt


0-15 deg.

·        Top and Bottom Trimming TT/K



o   Motor size (each)


.4 HP

o   Cutting speed


12,000 RPM





·     Thick, welded Steel Frame

·     Steel pressure beam with 2 rows rubber rollers

·     Feed chain with industrial high grip rubber

o Chain on hardened steel guides

o Guides consist of one circular and one flat

·     Manual adjustment of the pressure beam w/ readout

o Automatic pos. of the working units w/ reference to panel

·     Mechanical digital indicators for panel thickness

·     High Frequency Motors w/ Inverter

·     Centralized dust extraction

·     Adjustable panel support rollers

·     Sound enclosure

·     Lockable switch cabinet

·     Equipped with

o Glue pot and edge processing magazine

o 2-Motor end trimming Unit. 0-15 deg

o 2- Motor Top and bottom trimming unit

o Edge scraping unit for 3mm

o Brushing unit




Execution complying to US regulations (UL/CSA) Safety Standards


 220V 60 hz


Spare glue tank 1.5kg for GP200 unit


Tool kit 2mm on all units


Kit for Nesting processing

CA2074 Anti-Adhesive Unit "RA"



Glue Scraping Unit “GS/K1”

Brushing/ Buffing Unit “BFK”


 Pallet - FLEXA 27-RM7 L=2800



E-Stop on main control panel
230 V – 3 Ph – 60 Hz. 37 Amps




In feed and construction

·        Industrial grade in feed system with high grip, interchangeable rubber pads.

·        Guided by a chain for accurate feeding and long lasting perfection

·        Thick, Steel top pressure beam complete with two rows of rubber coated wheels.

·        Robust panel support which can be extended according to the size of the parts

MEGA 120 Controller

·        Ergonomic positioning

·        4”Graphic Display w/ multi language selection

·        Glue temp. control w/ temp

·        Unit operation and feed track start/ stop

·        Digital readouts

·        Parameter/ setting control

·        On board diagnostics

·        Partial and absolute statistical info: # of pieces worked, edge used and feeding             information

 Pre-milling unit

●       Two cutter heads with automatic timing

●       Independent high frequency motors with

●       Stock removal determined by infeed fence with digital display

●       Timed blower to clean the machined surface

●       Diamond tools

         2.4 hp each. Tools D=100mm H=49mm

         Max stock removal is H=45mm / 55mm ²

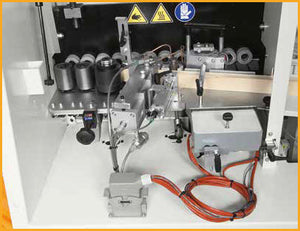

·        Three Pressure rollers (1 large driven, 2 idle with opposed conicity)

·        Teflon coated glue pot

·        Automatic glue temperature regulator to reduce glue temperature if machine is not in use to reduce glue heat time

·        Automatic recovery of glue

·        Automatic loader for strips

         2.4 kW. 3.3 HP Power. 1.5 Kg Capacity

End Trimming Unit IK/200

·        2 Independent high frequency motors w/ blades

·       Pneumatic tilting of the saw blade 0 – 15 deg. from control panel

·        Units slide on THK guideways

·        Mounted to the base for vibration free machining

         12,000 RPM and .3 hp each

Nesting Kit

  • Allows processing of predrilled parts
  • 3 contacting rollers on Trimming Unit, Edge Scraping Unit
  • Rubber coated copy wheel for end trimming unit

Trimming Unit “TT/K”

·        2 Independent high frequency motors

·        Vertical revolving copy devices and front copy pads for accurate positioning

·        Dust extraction hood

·        3mm tooling standard

        12,000 RPM and .4 hp each

Edge Scraping Unit “SCR/K”

·        For finishing 1mm – 3mm PVC/ ABS edging

·        Front and vertical copy devices for accurate positioning of the knives

·        Complete with digital mechanical readouts for accurate positioning and adjustment

·        Dust extraction

·        Supplied with 3mm tooling

Glue Scraping Unit GS/K1

  • Eliminates excess glue between panel and edge
  • Eliminates small edging overhang (0.1 – 1mm)
  • 2 Pairs of vertical rotating copiers
  • Air blowers on both cleaning knives

           Self-adjusting throwaway knives
