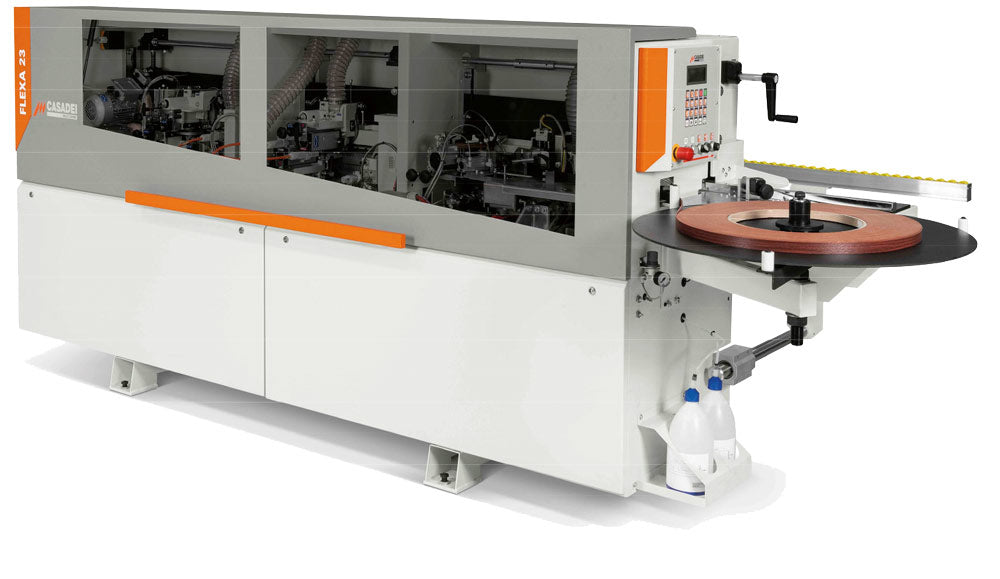

FLEXA 23 RMA8 23-01242023-22B

The Flexa 23 Series is an affordable yet flexible solution for the small shop with capabilities to band tape, .4 -3mm pvc, laminate and wood strips up to 5mm. The Flexa 23 Series provides and entry level, heavy duty edgebander with a price to match.

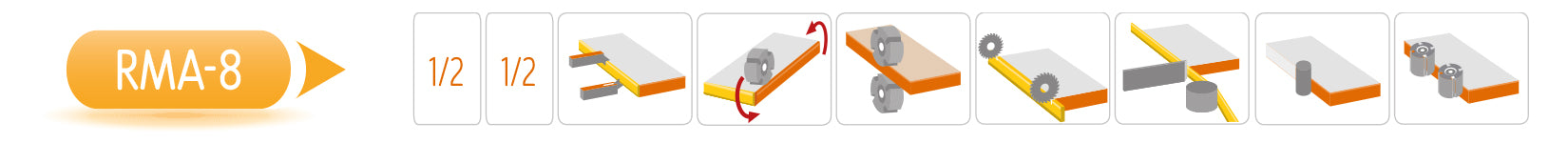

Unit 1:       Pre-milling unit

Unit 2:       Glue applicator and pressure rollers

Unit 3:       Edgebanding trimming guillotine

Unit 4:       End Trim

Unit 5:       Top and Bottom Trimming via 2 motors

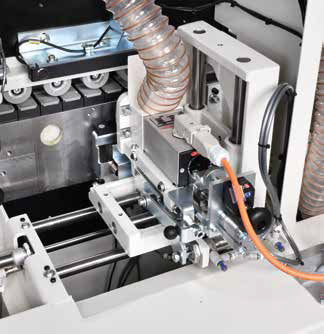

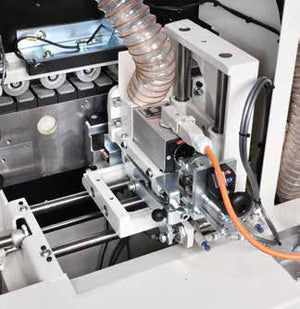

Unit 6:       Corner rounding

Unit 7:       Profile/ Radius Scrape

Unit 8:       Glue Scraping

Unit 9:       Brushing


Flexa 17 RM7

●    Working height

8 - 50 mm

0.3 -  2”

●    Coil edge thickness

.4 - 3mm

.015” - .12”

●    Strip edge thickness

3mm  (5mm opt.)

.12” (.20”)

●    Max overhang top and bottom (total top and bottom)

4 (2+2) mm


●    Min panel width



●    Min panel length



●    Feed speed

9 m/ min

29.5 f/min

●       Pre-Milling Unit



o       Motor size

3 Kw

4 HP

o       Cutting speed


7,200 RPM

o       Tool cutting height



●       Glue Tank GP/100



o       Glue capacity

.8 kg


●       End Trimming Unit IK/100R



o       Motor size (each)


.25 HP

o       Cutting speed


12,000 RPM

o       Blade size


125mm /kerf 12mm

●       Top and Bottom Trimming TT/K1



o       Motor size (2 each)


.47 HP

o       Cutting speed


12,000 RPM

o       Tool size



●       Rounding unit RA/1



o   Motor size (2 each)


.47 Hp

o   Tool size


55mm / 4mm

o   Cutting speed


12,000 RPM

●       Edge scraping SCR/K1



●       Brushing Unit



o       Motor size (each)


.2 HP

o       Speed


1,400 RPM





●       Thick, welded Steel Frame

●       Ergonomic PLC Controller

●       Panel support conveyor for entire machine length

●       Chain and pad feed belt with industrial high grip rubber

●       Manual adjustment of the pressure beam w/ readout

●       Auto pos. of the working units w/ reference to panel

●       High Frequency Motors w/ Inverter

●       Individual dust ports for each unit

●       Sound & safety enclosure

●       Lockable switch cabinet

●    Equipped with

o  Teflon coated glue pot and edge processing magazine

o  Pre-milling unit

o  Flush end trimming unit

o  2- Motor Top and bottom trimming unit

o  Single motor corner round

o  Edge scraping unit

o  Glue scraping unit

o  Brushing unit




Execution complying to US regulations (UL/CSA) Safety Standards








Anti-adhesive unit

Automatic edge feeding unit

Quick Release for glue pot with PUR ability quick drain

Replacement glue pot with PUR ability quick drain

Heating device for panel edge

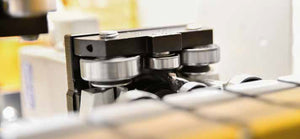

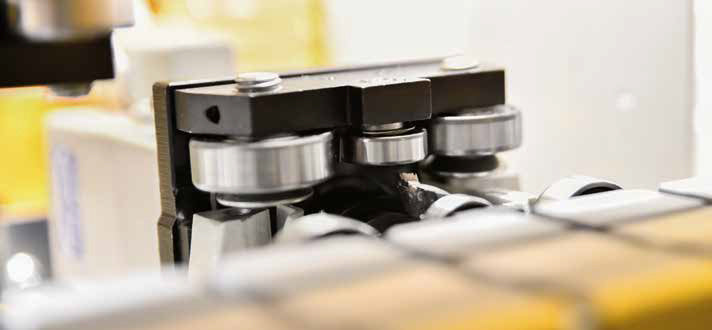

Nesting Kit

Brushing / Buffing Unit BF/K1



Glue Scraping Unit GS/K1

Spray Mist device for edge finishing


Seaworthy packing



E-Stop on main control panel
230 V – 3 Ph– 60 Hz


In feed and construction

  • Industrial grade in feed system
  • Chain and pad feed system with precision positioning
  • Steel top pressure beam complete with two rows of rubber coated wheels and automatic positioning of units
  • Robust panel support which can be extended according to the size of the parts, the entire length of the machine

PLC Controller

  • Ergonomic positioning on infeed side of machine
  • Glue temp. control w/ temp standby feature
  • Unit operation and feed track start/ stop
  • Digital readouts
  • Parameter/ setting control
  • E-stop

Pre-Milling Unit

  • Two diamond tooling
  • Time intervention w/ jump feature
  • 4 adjustable positions (.5 / 1 / 1.5 / 2) mm cutting depth
  • Time blower to cleaning panel surface
  • Vertical adjustment of tool position to maximize tool life
  • 4 hp

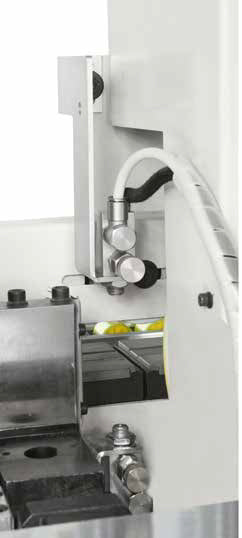

Anti- Adhesive Unit RA

  • Perfect cleaning of the panel
  • Prevents glue from sticking to the top and bottom surfaces

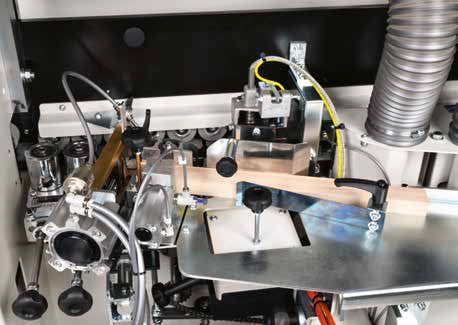

Glue Unit

  • Two Steel Pressure rollers
  • Teflon coated glue pot
  • Stand-by glue temperature regulator to reduce glue temperature if machine is not in use
  • Automatic recovery of glue
  • 1.76 Lb. Glue Capacity

Strip Loading Device

  • 3 – 5mm strip feed capacity
  • Ability to feed a stack of strips automatically
  • PLC Controlled

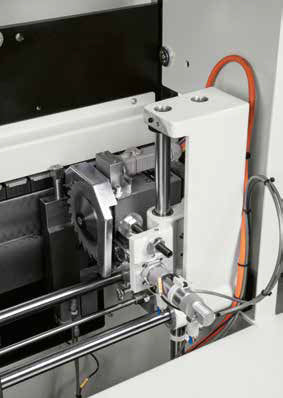

End Trimming Unit

  • Independent high frequency motor supplied w/ blade
  • Radius trimming provides a rounded edge mimicking the corner rounding function.
  • Flush cutting for .4mm – 5mm thick banding
  • Units slide on two cylindrical guideways for precision cutting
  • Mounted to the base for vibration free machining
  • .25 HP

Top and Bottom Trimming Unit

  • Independent high frequency motors
  • Vertical copy pads for accurate positioning
  • Dust extraction hood
  • Digital readout for precise, manual positioning
  • 3mm combination tooling standard for multi positioning with one cutter (.4mm – 3mm)
  • 12,000 RPM and .45HP each

Edge Scraping Unit

  • For finishing 1mm – 3mm PVC/ ABS edging
  • Front and vertical copy devices for accurate positioning of knives
  • Complete with digital readouts for accurate positioning and manual adjustment
  • Dust extraction port
  • Manual exclusion unit

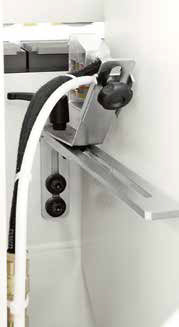

Spray mist device for edge finishing

  • Prepares edge and surface for scraping and buffing
  • Improves finish quality

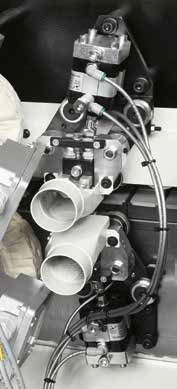

Glue Scraping Unit

  • With rolling copy pads
  • Improves panel cleaning
  • Eliminates excess glue between the panel and the edge
  • 4 sided knives can be turned to expose a fresh blade

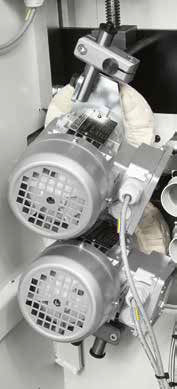

Buffing Unit

  • For cleaning panel to reduce manual labor of finished parts
  • Tiltable for accurate positioning
  • High frequency motor
  • 1,400 RPM each
  • .20 HP motor each
