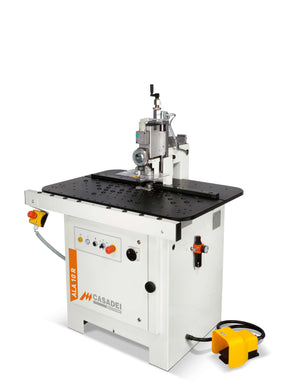

ALA 10R Trimmer



  • For straight or shaped panels

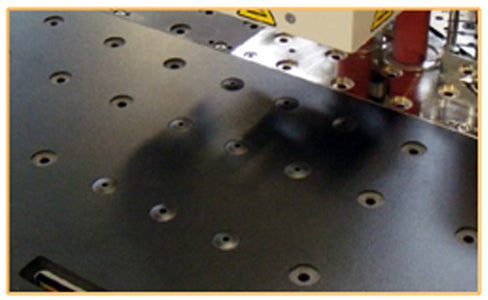

  • Work table
    • Phenolic covered
    • Modular holes for nylon inserts (20 included)
  • Trimmer
    • Front revolving tracer
    • Hardened, ground and chromed contact surfaces
    • Front adjustable tracer used for trimmed angled edges
    • Vertical, anti-scratch tracers
  • Motors
    • Vertical opening for curved panels
    • Upper motor w/ vertical and horizontal adjustment
    • 200 Hz inverter, w/ brake
    • Dust extraction hood above and below the table


  • E-Stop on main control panel
  • Service, 230 V – 3 Ph – 60 Hz

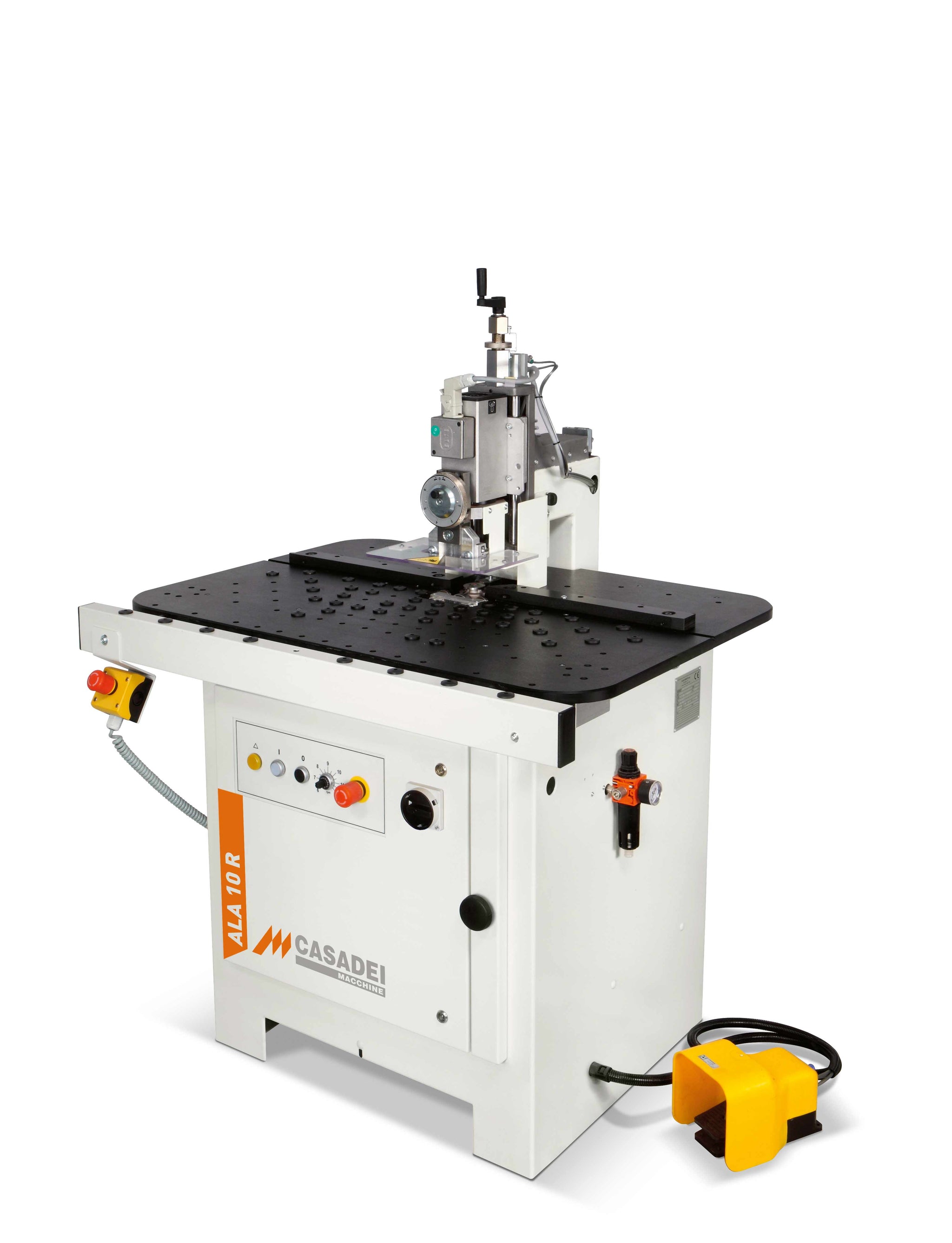

CA1652     ALA 10R manual trimming machine

CA3568     Pneumatic heads controlled with foot pedal

CA3565     Front support extensions for large panel support


  • Equipped with removable nylon inserts to adapt to different dimensions and part shapes.
  • Durable phenolic

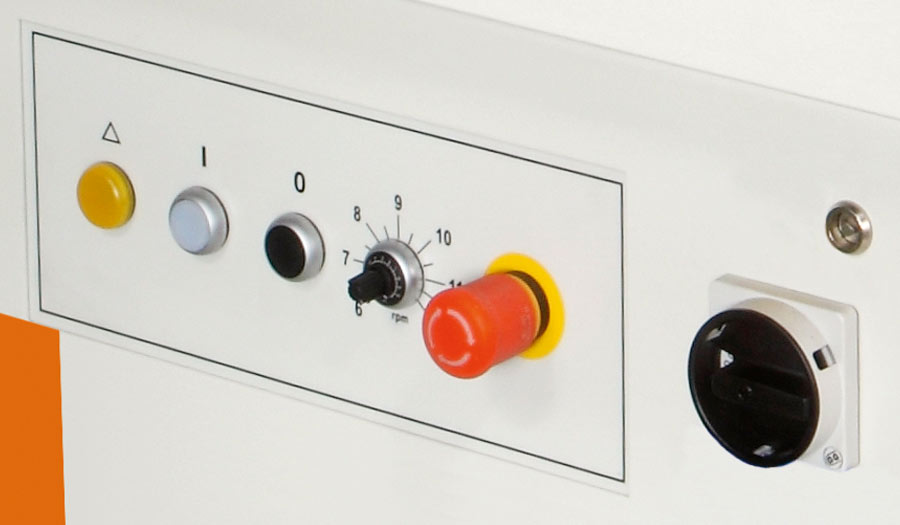

Front control panel

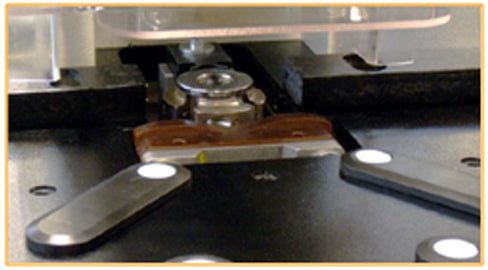

Top & bottom trimming unit

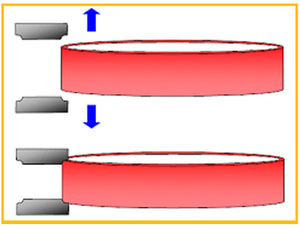

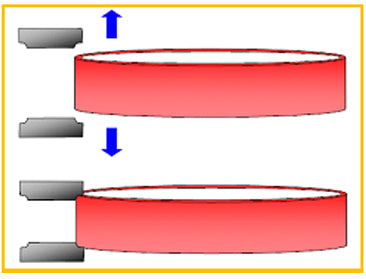

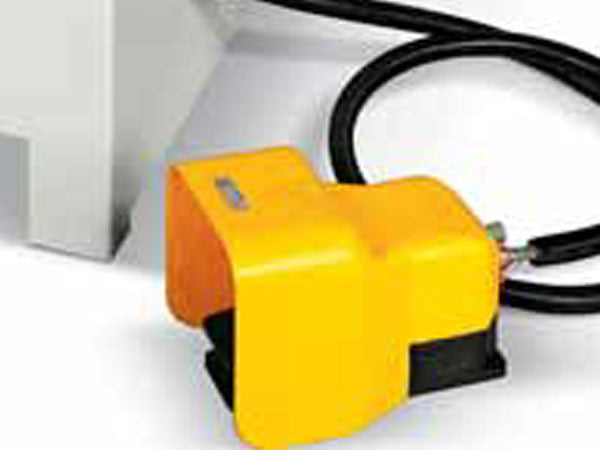

  • Activated by foot pedal to rise and lower the cutting unit
  • Pair of multifunction diamond cutters R = 2 mm.

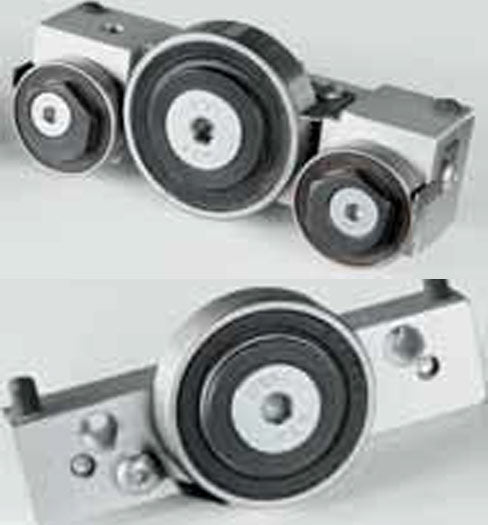

Set of interchangeable copying devices

  • Three bearing device for straight panels
  • Single bearing device for chamfered and shaped panels



·        Max strip edge thickness

4 mm


·        Min panel width

100 mm


·        Min panel length

200 mm


·        Panel thickness w/ chamfer cutter

14 - 80 mm

(0.55 - 3.14”)

·        Panel thickness w/ radius cutter

14 - 80 mm

(0.55 - 3.14”)

·        Min internal radius (concave)

25 mm


·        Power installed

1.5 kW


·        Adjustable Rotation Speed

9000 – 15,000rpm

·        Dust extraction

2 @ 80 mm

(2 @ 3”)


Seller warrants, for a period of one (1) year beginning on the date the Machinery is accepted, that the Machinery will be free of defects in workmanship and materials, excluding belts, bearings, and common electrical parts, which carry a six-month warranty. This warranty does not include parts consumed during normal operation (wearable items), working units, or maintenance required in the ordinary course of operation.  Seller shall warrant any replacement spare parts and accessories installed pursuant to this warranty for the period of ninety (90) days.


Tooling, including blades, is not included unless noted.  Upon request, we can supply a quotation of the most suitable tools required for use on this machine.
