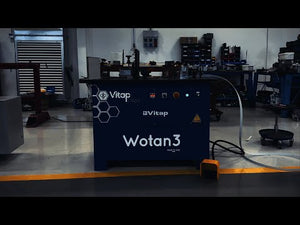

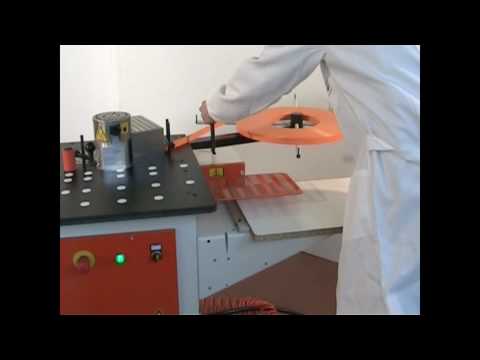

VITAP WOTAN 3  Contour Edgebanding and Trimming Machine

WOTAN 3 is a semi-automatic trimming and banding machine for shaped or straight pieces. Extremely intelligent and adaptive machinery, it will allow you to perform precise edging actions on your panels, both on straight and curved corners (concave or convex).

The easy to use WOTAN 3 edgebanding machine will meet your economic needs, easy to use and optimize the space in the company. This machine is equipped with a practical and manageable retractable trimming unit that takes the place of a standalone trimmer. Thanks to Smart3 you will be able to satisfy the demands of your customers both effectively and economically.

STANDARD EQUIPMENT:

• 2 tape feeding speed (3 m/min or 7 m/min)
• 1 glue spreading roller for 10-60 mm panel thickness
• Plastic cup to raise the panel 3mm
• Guillotine to cut bands up to 3 mm thickness
• edge 0,5-3mm
• Solid Phenolic table easy to clean and with no heat transmission 20mm thickness
• Electronic temperature control
• Foot pedal command for the guillotine
• Tilting trimming unit (with 1 high frequency motor HP 0.75 (kw0,55) RPM;12.000
• 1 cutter Head with 2 knives r1mm/r2mm/r3mm
• Support tape plate diam. ⌀ 600 mm

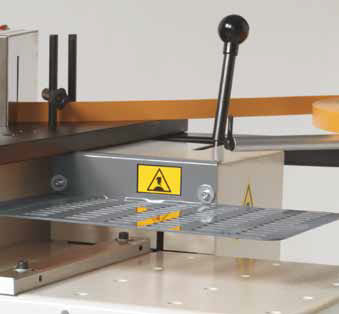

• Semi-automatic end-cutter with motor 0,5 kw and blade d=125 mm
• Working table 400 x 300 mm
• Standard accessories

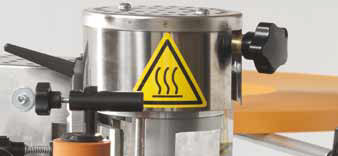

• Glue pot 1kg capacity
• Tape plate d=520mm
• CE standards
