CLICK HERE FOR SPEC SHEET

Standard Features & Equipment:

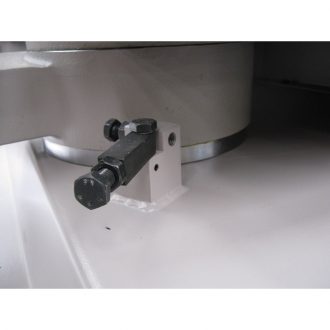

  • Up to 60-degree miter to the right and 45-degree miter to the left
  • 7-7/8″ Round Cutting Capacity
  • Manual Pull Down

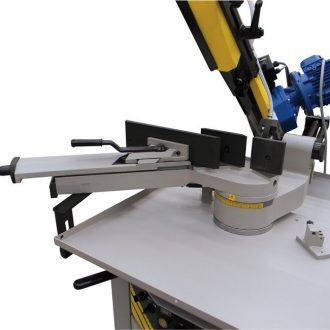

  • Vise is stationary for left and right miters

Technical Data:

Cutting Capacity O Degree 45 Degree/Right 60 Degree/Right 45 Degree/Left
Round 7-7/8″ 7″ 4″ 5-1/2″
Rectangle A 7-7/8″ x 7-7/8″ 5-1/3″ x 7″ 4″ x 4″ 5″ x 5-2/3″
Rectangle B 9″ x 7-7/8″ 7-7/8″ x 5-1/2″ 6-2/3″ x 4″
Square 7-7/8″ x 7-7/8″ 6-7/8″ x 6-7/8″ 4″ x 4″ 5-1/3″ x 5-1/3″
Blade Size Blade Speed Saw Motor Power Voltages Available Foot Print Weight
8’10” x 1” x .035” 115 and 230 FPM
(110v/1PH is 1
Speed – 230 FPM)
1.75 HP 220v/3PH
440v/3PH
110v/1PH
35” x 57” 750 lbs.
