$8,322.00
| /

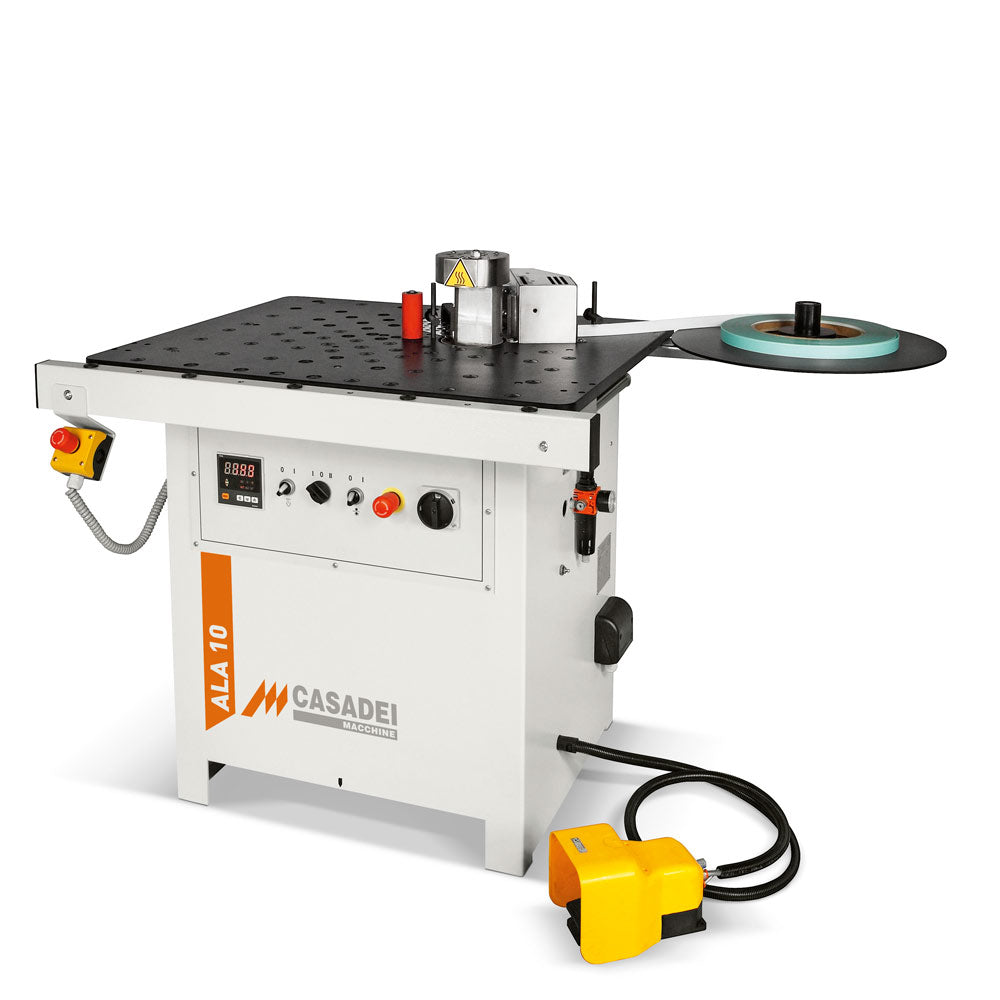

Casadei ALA 10 Contour Edgebander
SPECIFICATIONS:
- For straight or shaped panels
- Work table
- Phenolic covered
- Modular holes for nylon inserts (80 included)
- Feed System
- Automatic loading of strip edging from magazine
- Coil holder and shear device for cutting coiled edging
- Gluing
- Continuous glue circulation to avoid overheating
- Teflon coated glue tank beneath work table
- Rapid heat-up: 7 min.
- Motorized glue roller
- 1 idle pressure roller
ELECTRICAL DATA:
- E-Stop on main control panel
- Service, 230 V – 3 Ph – 60 Hz
INCLUDED FEATURES:
CA1650 ALA 10
CA3564 Coil holder plate 780 mm.
CA3565 Front extensions for large panel support
MACHINE FEATURES
-
Worktable
- Equipped with removable nylon inserts to adapt to different dimensions and part shapes.
- Durable phenolic
- Single idle pressure roller

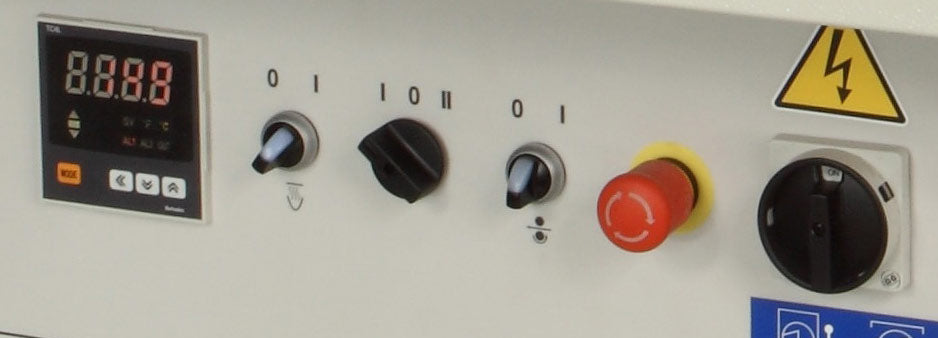

- Front control panel
- Coil holder and shear device for cutting coiled edging

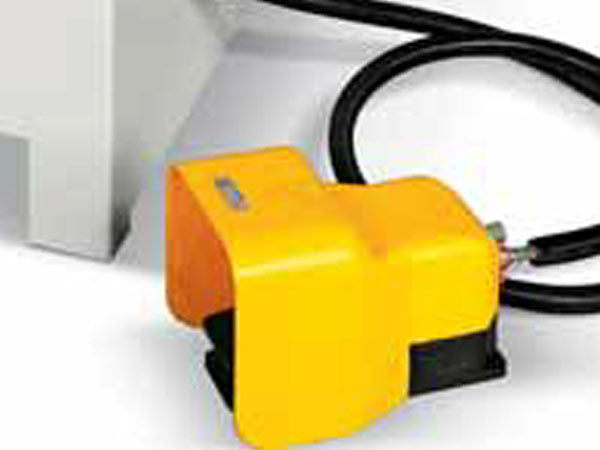

- Start and stop foot pedal
|
TECHNICAL DATA: |
|||
|
· Coil holder diameter |
780 mm |
(30.7”) |
|
|
· Panel thickness |
8 - 80 mm |
(0.31 - 3.14”) |
|
|
· Min panel width |
50 mm |
(1.96”) |
|
|
· Min panel length |
210 mm |
(8.27”) |
|
|
· Max strip edge thickness |
3 mm |
(0.12”) |
|
|
· Coil width |
12 – 83 mm |
(0.47 -3.26 mm) |
|
|
· Shearing capacity |
80 mm panel |
1.5 mm |
(0.059”) |
|
|
50 mm panel |
2.5 mm |
(0.098”) |
|
|
45 mm panel |
3 mm |
(0.12”) |
|
· Min internal radius (concave) w/ 0.4 mm |
25 mm |
(1.01”) |
|
|
· Max external radius (convex) w/ 0.4 mm |
5 mm |
(0.19”) |
|
|
· Two Feed speeds |
4 to 8 mpm |
(13 to 26 fpm) |
|
|
· Max operating temp |
220° C |
(428° F) |
|
|
· Power installed |
3.5 kW |
|
|
